Sigma Batch Mixer
$8,599.00
New
Fall Special:
Free Shipping or Extra Savings, Contact Us To Learn More
Special Discounted Pricing Available

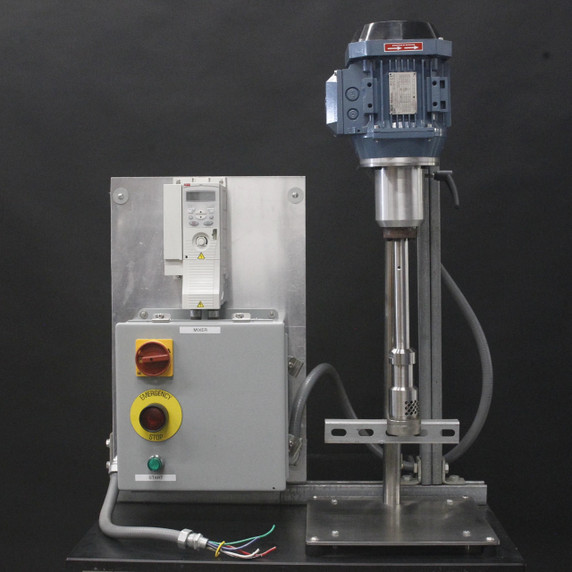

ChemPro Maelstrom DB50 High Shear Homogenizer
The ChemPro Maelstrom DB50 High Shear Homogenizer is a powerful, laboratory-grade rotor–stator mixer designed for emulsification, dispersion, deagglomeration, and homogenization in research and pilot-scale applications.
Featuring Maelstrom’s patented Fluid Division Mixing (FDM) technology, the DB50 delivers intense hydraulic shear and micro-scale blending energy far superior to conventional high-shear mixers.
Advanced Mixing Performance
The FDM mixing head incorporates a uniquely engineered rotor–stator geometry that creates strong hydraulic shear fields within the mixing zone.
This ensures complete particle breakup, rapid emulsification, and uniform blending — even in viscous or multiphase materials.
The result is faster processing times, consistent batch quality, and reproducible results for laboratory and R&D operations.
Key Features
-
Patented Fluid Division Mixing (FDM) Technology – Generates exceptionally fine dispersions and emulsions with high mixing energy.
-
High Shear Output – Up to 6,000 RPM, producing intense fluid shear for efficient particle and droplet size reduction.
-
Variable Rotor–Stator Configurations – Standard 2/3 head (two stator cavity rows, three rotor rows); optional 3/4 or 4/4 heads available.
-
Durable Construction – Wetted parts made from 300-series stainless steel.
-
Precision Motor Control – User-friendly speed control with dual digital displays for load and RPM monitoring.
-
Manual Lift Column & Stand Mount – Provides easy adjustment and stable operation during batch processing.
-
Easy to Clean & Maintain – Smooth, sanitary design ideal for laboratories requiring cGMP or hygienic standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Maelstrom DB50 |
| Mixing Technology | Rotor–stator with patented Fluid Division Mixing (FDM) design |
| Rotor Diameter | 50 mm (2 inches) |
| Maximum Mixing Volume (Low Viscosity / Water) | 10 L (2.5 gal) |
| Maximum Mixing Volume (High Viscosity / Cream) | 4 L (1 gal) |
| Viscosity Range | 0.0001–30 Pa·s (0.1–30,000 cP) |
| Maximum Speed | 6,000 RPM |
| Typical Motor Power | 0.75 kW (1.0 HP) |
| Weight | Approx. 28 kg (62 lbs) |
| Construction Materials | 316L stainless steel (optional titanium, Hastelloy®, or ceramic) |
| Electrical Supply | 120V or 220–240V AC, single-phase, 50/60Hz |
| Mounting Options | Manual stand with adjustable lift column |
Applications
The ChemPro Maelstrom DB50 is widely used for small-batch processing in:
-
Pharmaceuticals & Biotech – creams, suspensions, emulsions, and sterile product development
-
Cosmetics & Personal Care – lotions, gels, and fine emulsions
-
Food & Nutraceuticals – sauces, flavor dispersions, and nutritional emulsions
-
Specialty Chemicals & Coatings – pigment, polymer, and resin dispersions
-
Research & Nanotechnology – advanced materials, nanodispersions, and R&D formulations
Advantages
-
Superior Mixing Efficiency – Higher shear energy and smaller particle size compared to conventional mixers.
-
Flexible & Scalable – Ideal for R&D, pilot studies, and process optimization.
-
Consistent, Reproducible Results – Tight control of shear rate and mixing time.
-
Rugged Laboratory Construction – Designed for long service life under continuous use.
-
Multiple Material Options – Customize wetted parts for aggressive or abrasive products.
Buy ChemPro Maelstrom DB50 High Shear Homogenizer
HiTechTrader offers the ChemPro Maelstrom DB50 High Shear Homogenizer, integrating patented FDM technology, precision speed control, and durable stainless-steel construction.
Ideal for laboratory emulsification, dispersion, and deagglomeration, the DB50 combines power, flexibility, and reliability for modern R&D and production environments.
Contact HiTechTrader today to request a quote or learn more about the ChemPro Maelstrom DB50 and other high-shear homogenizers.
