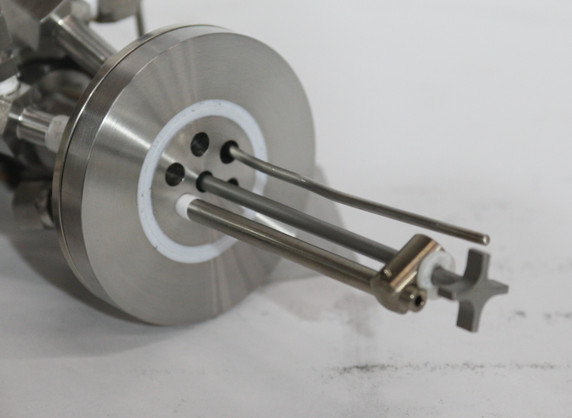

Parr 5513 100 ml High Temp High Pressure Stainless Steel Chemical Reactor
Product Code:
15357, 15356, 15355
Condition:
Used
$6,000.00
Special Discounted Pricing Available
Parr 5513 100 mL High Temperature / High Pressure Stainless Steel Reactor
The Parr 5513 Reactor is a compact, high-performance pressure vessel engineered for demanding chemical reactions under extreme conditions. Designed for lab and pilot applications, this 100 mL reactor offers precision, safety, and flexibility for research in catalysis, high-pressure synthesis, and advanced materials development.
Key Features & Advantages
-
Compact High-Pressure Design
As part of Parr’s Series 5500 High-Pressure Compact Reactors, the 5513 model supports up to 3,000 psi (≈ 207 bar) and tolerates high temperatures (depending on seal choice) — ideal for aggressive chemical environments. -
Stainless Steel Construction
Wetted parts are built from T316 stainless steel, delivering excellent corrosion resistance, durability, and long-term reliability even with harsh reagents. -
Flexible Sealing Options
Compatible with PTFE flat gaskets (up to ~350 °C), as well as FFKM or FKM O-rings (for lower temperature limits), allowing adaptation to different process needs. -
Stirring & Mixing Capability
Equipped with a magnetically-coupled stirrer, this reactor supports mixing in viscous media. -
Control & Instrumentation

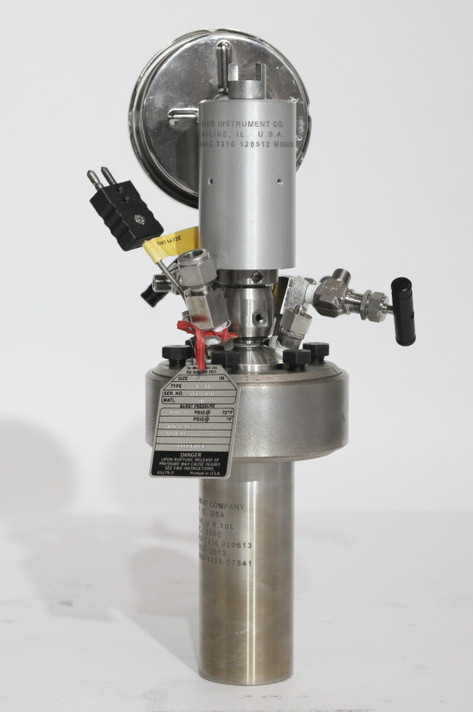

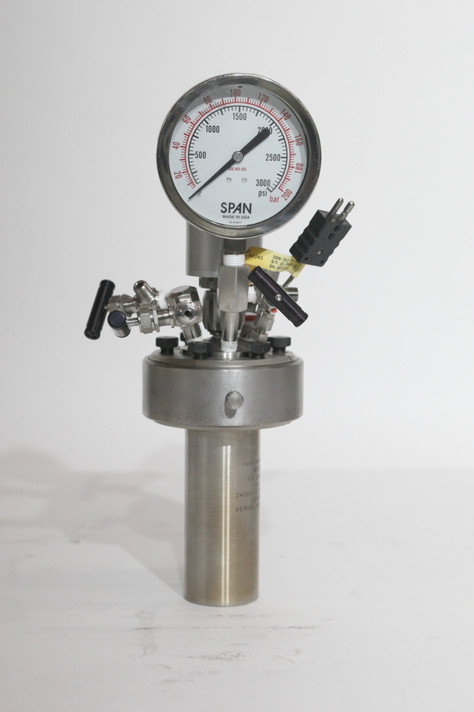

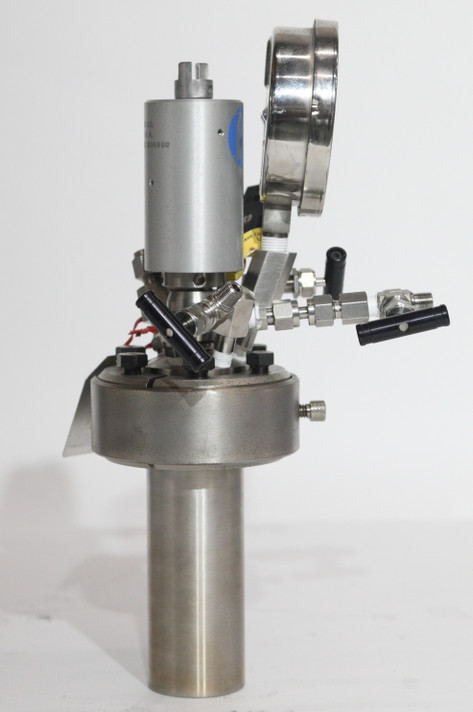

Standard features include gas inlet/outlet valves, a sampling valve, pressure gauge, safety rupture disc, and internal thermocouple.

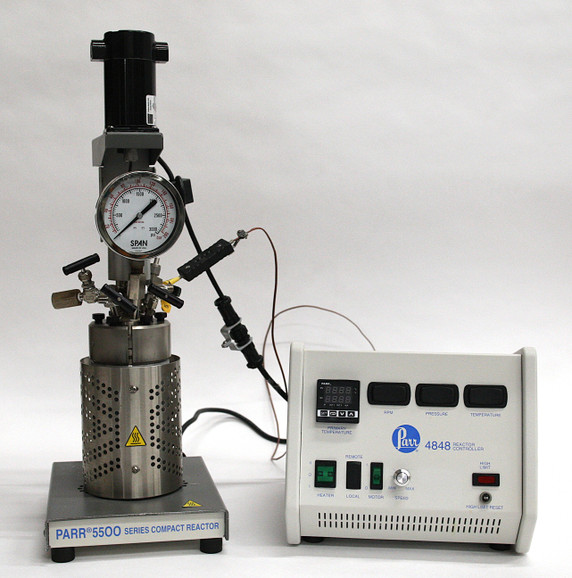

Many units are paired with a Parr 4848 PID controller, allowing ramp/soak programming and precise temperature control. -

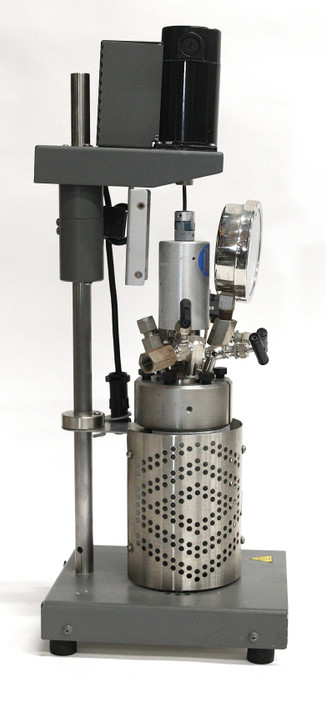

Bench-Top Format
The reactor is a moveable-head, compact bench unit, minimizing footprint while maintaining high performance.
Operating Specs
| Parameter | Specification |
|---|---|
| Nominal Volume | 100 mL |
| Maximum Pressure (MAWP) | 3,000 psi (≈ 207 bar) |
| Maximum Temperature | Up to 350 °C (with flat PTFE gasket) |
| Stirrer Speed | Up to ~1,700 rpm (varies by unit) |
| Power / Motor | 1/17 hp variable-speed motor (magnetic drive) |
| Valve Connections | 1/8″ NPT male for gas/liquid ports |
| Closure Mechanism | Split-ring or compression closure depending on gasket choice |
Applications
The Parr 5513 Reactor is ideal for:
-
High-pressure catalytic reactions (hydrogenations, oxidations)
-
Polymerization or oligomer synthesis under controlled conditions
-
Supercritical fluid extraction or reactions
-
Small-scale process development, scale-up trials, and reaction screening
-
Research in petrochemicals, fine chemicals, and materials science
Why Choose This Reactor?
-
Reliability in harsh conditions — Withstands high pressure, temperature, and corrosive reagents
-
Compact but powerful — Fits on standard benches, yet handles demanding reactions
-
Versatility of seals and materials — Adaptable for various chemistries
-
Proven brand backing — Parr’s Series 5500 reactors are well-established in high-pressure lab operations
Why HiTechTrader?
HiTechTrader has built a reputation for providing high-quality laboratory equipment backed by over 40 years of expertise. When you purchase this Parr 5513 100 mL High Temp / High Pressure Reactor through us, you receive:
- Equipment inspected for integrity, safety, and performance.
- Support for custom configurations and add-ons.
- Expert technical assistance for setup and operation.
- A cost-effective alternative to new systems without compromising quality or reliability.
