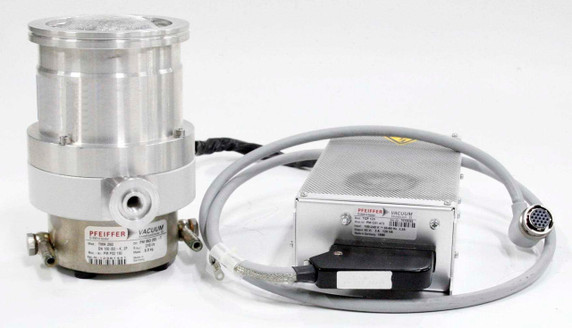

Pfeiffer Vacuum TMH-260 Turbomolecular Pump with TCP-120 Controller

The Pfeiffer TMH-260 is a precision-engineered turbomolecular pump designed to create the ultra-high vacuum (UHV) environments essential for advanced research and industrial processes. Built with a hybrid bearing system, magnetic bearings on the high-vacuum side and ceramic ball bearings on the forevacuum side, it delivers smooth, low-vibration operation even at rotational speeds reaching 60,000 rpm. The result is stable performance, minimal noise (<50 dB), and long-term reliability across a wide range of high-vacuum applications.

At HiTechTrader, we make cutting-edge vacuum technology like the TMH-260 accessible to laboratories, universities, and industrial facilities by offering rigorously tested pre-owned and refurbished systems. Paired with the Pfeiffer TCP-120 controller, this package ensures precise speed regulation, safe and controlled start-up, built-in thermal and overspeed protection, plus RS232 remote monitoring capability, all at a fraction of the cost of new equipment. This combination is especially valuable for fields such as semiconductor fabrication, mass spectrometry, thin-film deposition, and surface science research, where precision and dependability are critical.

General Specifications

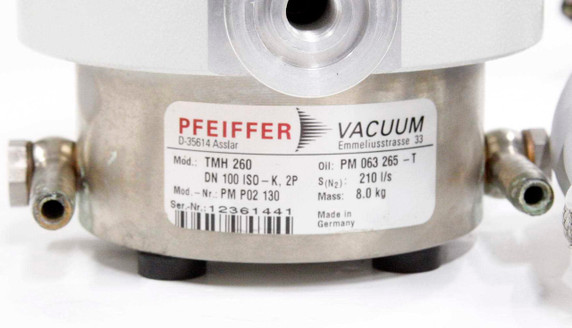

1. Model: TMH-260 DN 100 ISO K 2P PM P02 130
2. Pump Type: Turbomolecular pump with hybrid magnetic/ceramic bearing design
3. Pumping Speed: 210 l/s for Nitrogen (N₂)
4. Inlet Flange: ISO-K 100
5. Outlet Flange: DN 25 ISO-KF / G 1/4"

Performance Details

1. Compression Ratios
1. Nitrogen (N₂): > 1 × 10⁹
2. Helium (He): 3 × 10⁵
3. Hydrogen (H₂): 1.3 × 10⁴
2. Ultimate Pressure: < 1 × 10⁻¹⁰ mbar (with backing pump)
3. Max Forevacuum Pressure:
1. N₂: 10 mbar | He: 8 mbar | H₂: 4 mbar
4. Max Gas Throughput:
1. N₂: 3.5 mbar·l/s | He: 4.0 mbar·l/s | H₂: 1.2 mbar·l/s

Mechanical & Electrical

1. Speed: 60,000 rpm nominal | 40,000 rpm standby
2. Run-Up Time: < 2 minutes to 90% rated speed
3. Noise Level: < 50 dB(A)
4. Cooling: Water-cooled (50 L/h @ 15 °C), optional air cooling available
5. Temperature Limits: Water 5–25 °C; Rotor ≤ 90 °C; Ambient 0–35 °C
6. Lubricant: TL 011 for ball bearings

Safety & Protection

1. Automatic over-temperature shutdown with controlled rotor deceleration
2. Safe venting connector for pressure release
3. Optional sealing gas connection for corrosive or contaminated gases

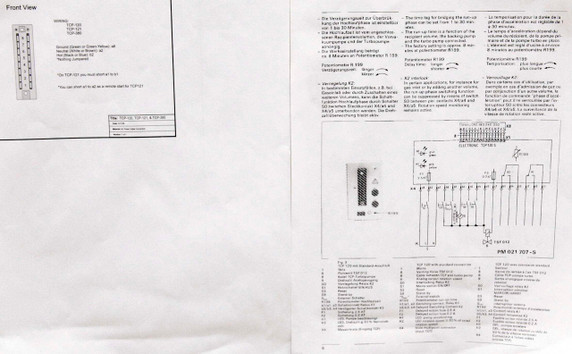

Controller – Pfeiffer TCP-120

1. Power Input: 100–240 V AC, 50–60 Hz, 2.5 A
2. Output: 42 V DC, 3 A (120 VA max)
3. Features: Soft start-up, precise speed regulation, integrated safety protections
4. Interfaces: RS232 remote monitoring, sealed bayonet connector
5. Design: Desktop or rack-mount compatible

Applications

1. Semiconductor & Microelectronics: Fabrication, thin-film deposition
2. Surface Science & Research: UHV studies, electron microscopy, spectroscopy
3. Mass Spectrometry: Stable vacuum environments for sensitive measurements
4. Coating & Materials R&D: Advanced thin-film and surface treatments
5. Gas Handling: Suitable for inert and corrosive gases (with sealing gas option)

Physical & Installation

1. Weight: ~8 kg
2. Compact Design: ISO-standard flanges for easy integration
3. Cooling Requirements: Water supply (air-cooling optional)
4. Accessories: Sealing gas kits, connectors, silencers, protective shrouds, seals
