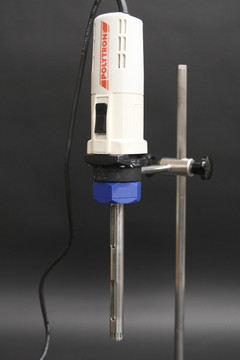

Brinkmann/Polytron PT 10/35 Homogenizer with Kinematica Controller

The Brinkmann/Polytron PT 10/35 is a high-performance laboratory homogenizer designed for reproducible and efficient sample preparation. Manufactured by Kinematica AG in Switzerland, it combines robust engineering with precise, variable-speed control driven by a 750 W motor. The system includes a PCU power control unit, laboratory stand, and vessel holder, making it a versatile solution for both research-scale and pilot-scale homogenization workflows.

At HiTechTrader, we make advanced laboratory equipment like the Polytron PT 10/35 more accessible by offering pre-owned and refurbished homogenizers that deliver premium performance at a fraction of the cost of new systems. Each instrument is carefully tested and inspected to ensure consistent performance, reliability, and long service life—giving laboratories the benefits of Swiss precision without exceeding budget.

Vessel and Construction

1. Motor Power: 750 watts, engineered for heavy-duty laboratory use.
2. Voltage: 110 V, 50/60 Hz compatible.
3. Speed Range: Variable control up to 24,000 rpm.
4. Stator Diameter: 12 mm (typical), processing volumes from 1.5 mL to 100 mL.
5. Dimensions: 3.74 in. (W) × 8.26 in. (D) × 9.72 in. (H) (~9.5 × 21 × 24.7 cm).
6. Weight: ~18 lbs (8.2 kg).
7. Operating Temperature Range: 0 °C to 40 °C.

Closure and Sealing

1. Quick-Release Coupling: Allows rapid changeover and cleaning of rotor/stator assemblies.
2. Autoclavable Components: Stainless steel processing heads withstand sterilization at 121 °C and 15 psi for 15 minutes.

Operating Parameters

1. Control Unit: Supplied with PCU-11 electronic power control for precise, stable speed regulation.
2. Shear Force Generation: Rotor–stator design enables efficient emulsification, dispersion, and homogenization.
3. Durability: Stainless steel construction provides resistance to wear and chemical corrosion.
4. Flexibility: Supports both small-scale and pilot-scale workflows across diverse sample types.

Accessory Compatibility

1. Broad compatibility with Kinematica Polytron generator probes and dispersing tools.
2. Adjustable stand and vessel holder for ergonomic benchtop operation.
3. Optional dispersing heads and stators for various homogenization tasks.
4. Spare parts, consumables, and accessories widely available.

Safe Operation Guidelines

1. Always secure samples with the provided vessel holder during homogenization.
2. Ensure dispersing tools are properly coupled before activation.
3. Clean and sterilize stator/rotor assemblies after each use to maintain aseptic workflows.
4. Operate within recommended volume ranges (1.5 mL to 100 mL per stator head).
5. Do not exceed rated rpm for extended durations to preserve motor life.

Applications

The Polytron PT 10/35 Homogenizer is widely used for:

1. Life Sciences: Tissue homogenization (plant, animal, seeds), DNA/RNA extraction, toxicology.
2. Pharmaceuticals & Food Science: Preparation of emulsions, suspensions, and fine dispersions.
3. Research & Environmental Labs: Soil extractions, sample disruption, particle size reduction.
4. Industrial R&D: Suitable for cell disruption, emulsification, and dispersion across multiple sectors.

Additional Information

1. Manufactured by Kinematica AG, globally recognized for precision homogenization systems.
2. Supported with spare parts, probes, and service through a broad distributor network.
3. Supplied with full operator manuals and technical support for setup and maintenance.
