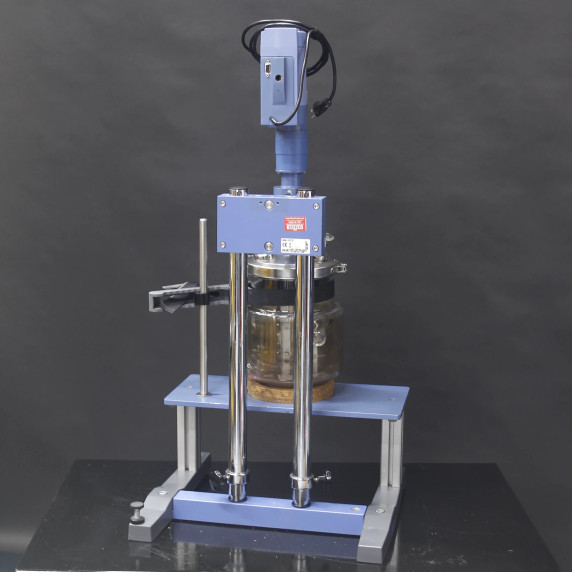

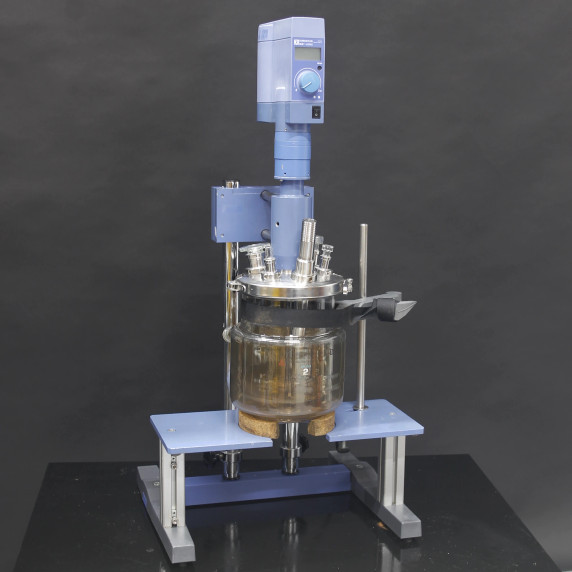

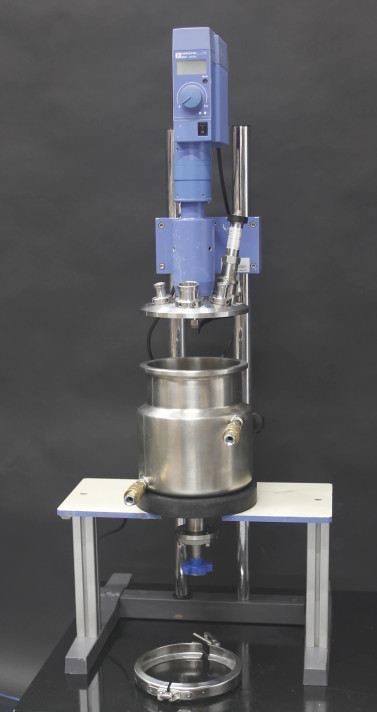

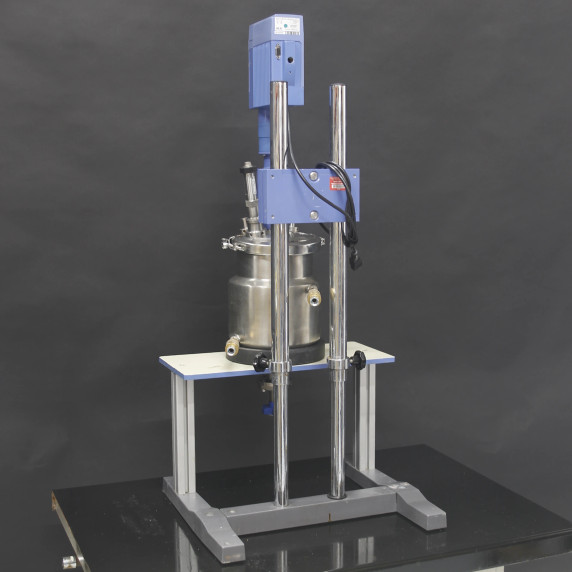

The IKA LR-2 ST Jacketed Glass Reactor is a precision engineered laboratory reactor system designed for controlled mixing, stirring, and temperature regulated processing of small-scale chemical and formulation batches. Manufactured by IKA Works, the LR-2 ST is widely trusted in chemical synthesis, pharmaceutical R&D, cosmetics formulation, and academic research laboratories.
Engineered for accuracy, repeatability, and flexibility, this system integrates a double walled (jacketed) glass vessel with a high torque IKA Eurostar overhead stirrer, allowing precise control over reaction conditions across a wide viscosity range. Its modular architecture supports scale up studies, method development, and routine laboratory workflows with confidence.
The LR-2 ST is ideal for laboratories that require repeatable results, clean operation, and process transparency without moving to larger pilot scale reactor platforms.

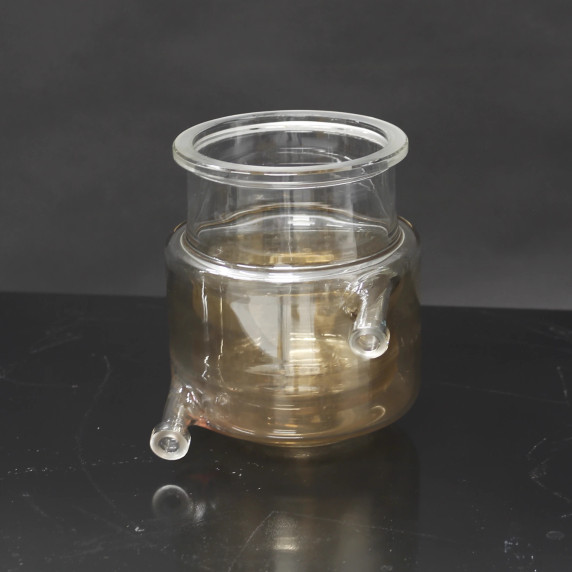

Reactor Vessel: LR 2000.1 double walled borosilicate glass vessel

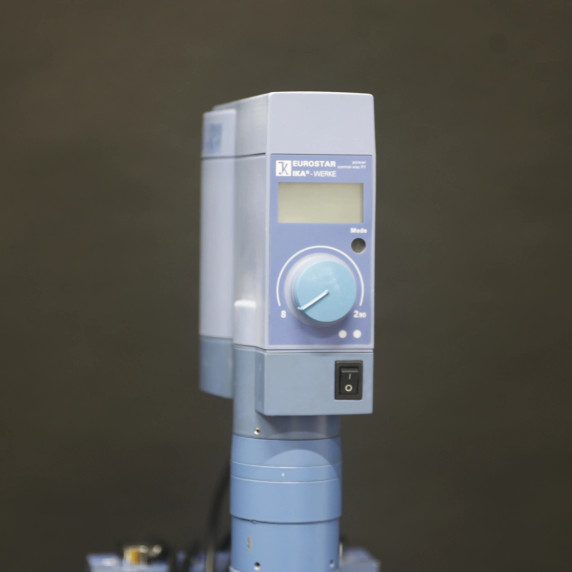

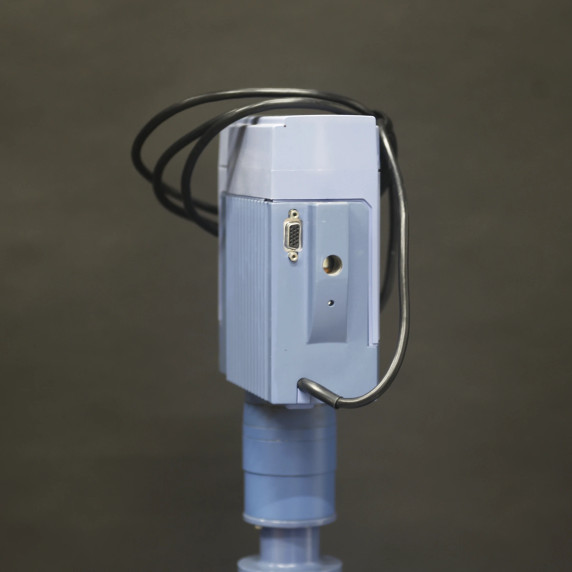

Overhead Stirrer: IKA Eurostar Power Control-Visc P7 (Euro-ST P CV P7 S1)
Drive System: High-torque, variable speed mechanical agitation
Temperature Management: External heating/cooling circulator compatible
| Parameter | Specification |
|---|---|
| Manufacturer | IKA Works |
| Model | LR-2 ST Jacketed Glass Reactor |
| Working Volume | 500 – 2000 mL |
| Reactor Vessel | LR 2000.1 double-walled glass vessel |
| Mixing Speed Range | 8 – 290 rpm (1/min) |
| Maximum Stirrer Torque | 380 N·cm |
| Viscosity Range | 0 – 150,000 mPa·s |
| Overhead Stirrer | Euro-ST P CV P7 S1 |
| Stirrer Type | IKA Eurostar Power Control-Visc P7 |
| Temperature Control | Via external circulating heater/chiller |
| Application Type | Laboratory and pilot-scale processing |
| Typical Installation | Benchtop or fume hood |
The IKA LR-2 ST Jacketed Reactor is ideal for:
Chemical Synthesis – Controlled reactions with precise temperature and mixing
Pharmaceutical R&D – API development, formulation, and process optimization
Cosmetics & Personal Care – Emulsions, creams, gels, and lotions
Materials Science – Polymer solutions, resins, and specialty materials
Academic Research – Teaching and experimental laboratory studies
Its ability to handle low-viscosity solvents through highly viscous gels makes it especially valuable for formulation science and materials development.
Jacketed vessel ensures uniform heat transfer
Stable speed control minimizes batch to batch variation
380 N·cm torque handles thick pastes and gels
Ideal for polymers, creams, and concentrated solutions
Compatible with condensers, probes, dosing funnels, and sensors
Easily integrated with existing lab circulators and controllers
Borosilicate glass allows full visual monitoring
Closed-system compatibility reduces exposure risk
Q: Is the IKA LR-2 ST suitable for viscous materials like gels or polymers?
A: Yes. With 380 N·cm torque and Eurostar P7 overhead stirring, it handles materials up to 150,000 mPa·s.
Q: Can this reactor be temperature controlled?
A: Yes. The double-walled vessel is designed for connection to an external heater or chiller.
Q: Is this system expandable?
A: Absolutely. It supports condensers, probes, addition funnels, and other IKA accessories.
Q: Is this appropriate for pharmaceutical R&D?
A: Yes. The LR-2 ST is widely used for formulation development and process optimization.
HiTechTrader offers the IKA LR-2 ST Jacketed Glass Reactor System for laboratories that demand precision, reliability, and flexibility in small-scale reaction processing. Whether you’re performing chemical synthesis, pharmaceutical development, or formulation R&D, the LR-2 ST provides controlled, reproducible performance backed by IKA’s global reputation.
Contact HiTechTrader today to request pricing, confirm availability, or receive guidance on compatible circulators, probes, and reactor accessories.
