Parr Instruments
Parr 4568 600 ML Hast C Chemical Reactor with Heater Recirculator
Product Code:
C15366 C15367 C15369
Condition:
Used
$23,000.00
Special Discounted Pricing Available

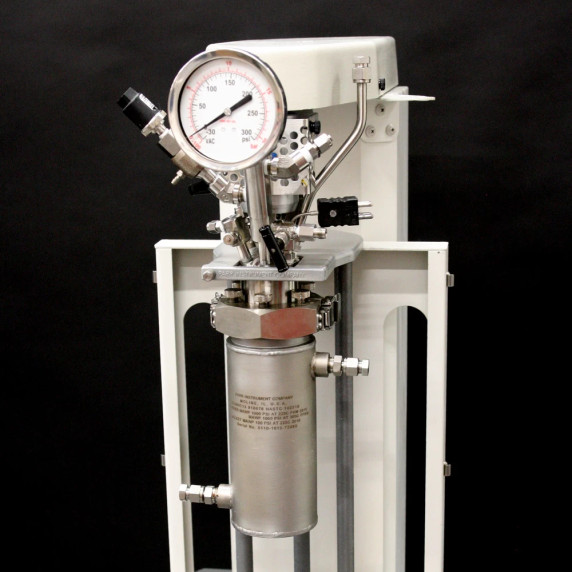

Parr 4568 600 mL Hastelloy C High Pressure Chemical Reactor
Reliable, High-Performance for Demanding Chemical Reactions
The Parr 4568 600 mL Hastelloy C High Pressure Chemical Reactor is engineered to handle the most demanding high-pressure and high-temperature chemical reactions. Manufactured by Parr Instruments this Model 4568 has a volume of 600 ml and all wetted parts are made from Hastelloy C, a nickel-based alloy renowned for its superior corrosion resistance, this reactor is perfect for research and industrial applications involving aggressive chemicals and extreme conditions. Whether you’re conducting catalytic reactions, high pressure synthesis, or other complex processes, the Parr 4568 ensures precision, safety, and efficiency.
Key Features & Benefits
-
Superior Corrosion Resistance: Crafted from Hastelloy C, this reactor excels in harsh environments, resistant to oxidizing agents, acids, and high-temperature conditions.
-
High-Pressure Performance: Rated for up to 1000 psi (68 bar) at 225 C (FKM), the Parr 4568 provides the necessary pressure control for challenging chemical processes.
-
Wide Temperature Range: The external jacket provides the ability to control temperature via an external bath circulator making it perfect for high-temperature reactions and advanced catalytic studies.
-
Efficient Mixing & Agitation: Dual 4-blade impellers powered by a 1/8 hp variable-speed magnetic stirrer ensure uniform mixing for consistent results.
-
Robust Sealing System: The split-ring closure system with compression bolts guarantees a leak-tight seal even under extreme pressure and temperature.
Specifications
-
Vessel Volume: 600 mL – Ideal for small scale experiments and pilot studies.
-
Material: Hastelloy C alloy for excellent corrosion resistance and mechanical strength.
-
Heating Power: Thermo Sahara S13 12 Liter capacity bath combined with Thermo Model PC-200 Controller provides a heat capacity of 1.2 KW @ 115 Volts
-
Temperature Measurement: Accurate monitoring with a Type J thermocouple.
-
Pressure Gauge: ( Which can be swapped out for a different range) 3.5-inch dial gauge with a range of 0-300 psi (20 bar) at standard temperature
Dimensions & Weight
-
Cylinder Dimensions: 2.5 inches x 8.0 inches (6.35 cm x 20.32 cm)
-
Weight: Approx. 22 lbs (10 kg) for the vessel assembly; 68 lbs (30.8 kg) total system weight.
Applications
The Parr 4568 is perfect for a variety of high-pressure and high-temperature applications, including:
-
High-pressure chemical synthesis with corrosive, oxidizing, or acidic reagents.
-
Catalytic reactions requiring elevated temperatures and pressures.
-
Pharmaceutical, fine chemical, and materials research with precise reaction control.
-
Industrial and laboratory research requiring aggressive operational conditions and reliable process monitoring.
Thermo Sahara S13 Stainless Steel Heating Bath with model PC200 controller.
- Temp range Ambient to 200 C
- Heating capacity at 115 V 1.2 kW
- Flow Rate 24 Liters / minute ( L/m )
- Volts 115
- Capacity 12 Liter
Perfect for high pressure reactions, advanced catalytic processes, and high-temperature applications in both research and industrial labs. Explore the power of the Parr 4568 600 mL Hastelloy C High Pressure Chemical Reactor with HiTechTrader! for precise, reliable, and efficient chemical synthesis under extreme conditions.
Warranty
All products sold by HiTechTrader include a 30-day limited warranty, unless otherwise stated. During this period, items that fail under normal use may be returned for repair, replacement, or refund. This warranty excludes misuse, modification, and incidental or consequential damages.
