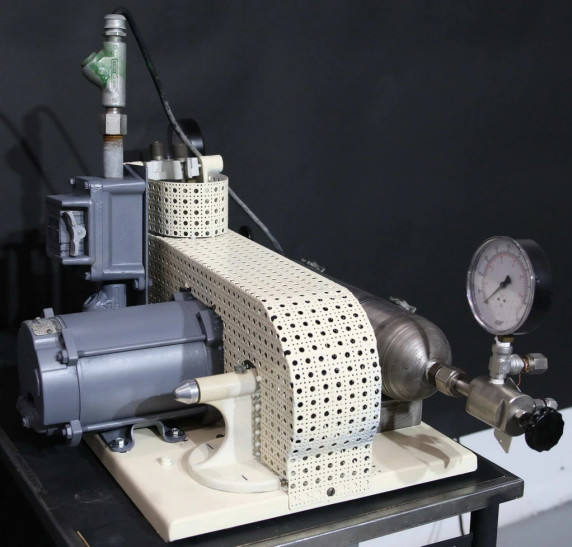

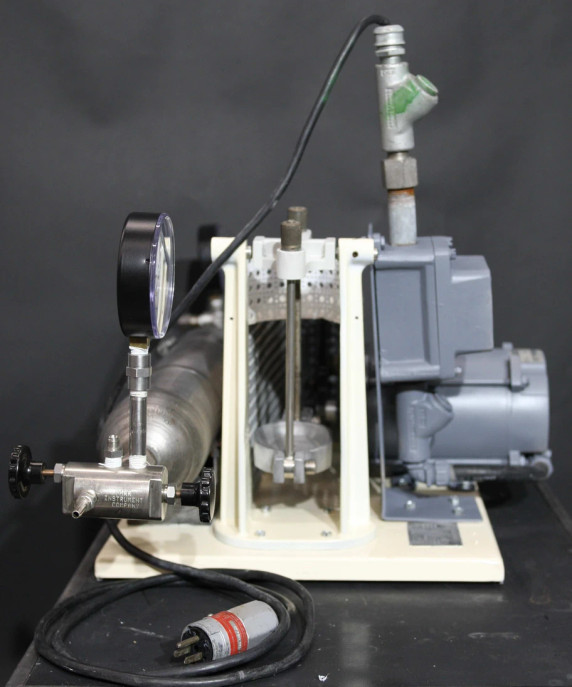

Parr Explosion-Proof 3911 Pressure Hydrogenation Apparatus

The Parr Instruments Model 3911 is a compact, shaker-type hydrogenation apparatus designed for safe, reliable laboratory-scale hydrogenation reactions under pressure. Built with explosion-proof components, protective shielding, and a durable shaker mechanism, the 3911 ensures operator safety and experimental precision when working with hydrogen gas. Its robust design and flexible motor and bottle options make it a trusted choice for organic synthesis, catalyst screening, and petrochemical research.

At HiTechTrader, we supply the Parr 3911 hydrogenation system as a refurbished and cost-effective alternative to new equipment. Each unit undergoes rigorous evaluation for performance and safety, ensuring dependable results in demanding laboratory environments.

1. Construction & Features

1. Reaction Bottles: Borosilicate glass (250 mL, 500 mL, 1 L, 2 L)
1. Pressure-tested and supplied with protective safety shields.
2. Stopper Design: Polypropylene inlet tube minimizes contact between reactants and metal.
3. Hydrogen Reservoir: 4-liter stainless steel tank with precision stainless steel valves and gauges.
4. Valves: Stainless steel stems, PTFE packing, replaceable PCTFE seats.
5. Shaker Mechanism: Operates at ~1725 RPM for efficient gas–liquid mixing.
6. Flexible Motor Options:
1. Standard motor
2. Air motor

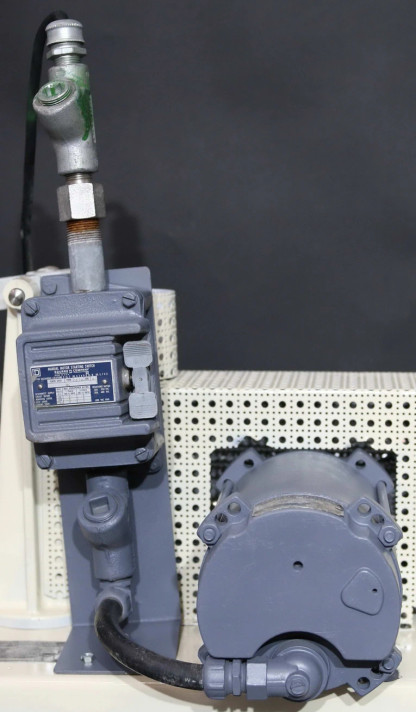

3. Explosion-proof motor (Class 2510, Type MR2H, 1/4 HP, 1725 RPM, 115V/4.2A).

2. Operating Parameters

1. Maximum Working Pressure:
1. 250 & 500 mL bottles: 60 psig
2. 1 L bottle: 40 psig
3. 2 L bottle: 30 psig
2. Capable of evacuation or hydrogen flushing before reactions.
3. Hydrogen Monitoring: ~8 psi drop per 0.1 mol H₂ consumed (250 mL bottle).
4. Temperature Control: Optional heating mantles and Parr controllers (e.g., Model 4833) with thermocouple integration.

3. Safety & Accessories

1. Protective bottle shields to contain fragments in case of glass breakage.
2. Recommended operation behind safety barricades for hazardous reactions.
3. Explosion-proof motor ensures safe use in volatile lab atmospheres.
4. Optional accessories: heating mantles, controllers, thermocouples, and stainless steel–protected probes.

4. Typical Applications

The Parr 3911 Explosion-Proof Hydrogenation Apparatus is widely used in:

1. Organic Synthesis & Pharmaceuticals – safe hydrogenation reactions.
2. Catalyst Screening – under controlled pressure and agitation.
3. Petrochemical & Fuel Research – hydrogen uptake and batch studies.
4. General Gas–Liquid Reactions – with catalysts, gases, and reactive chemicals.
