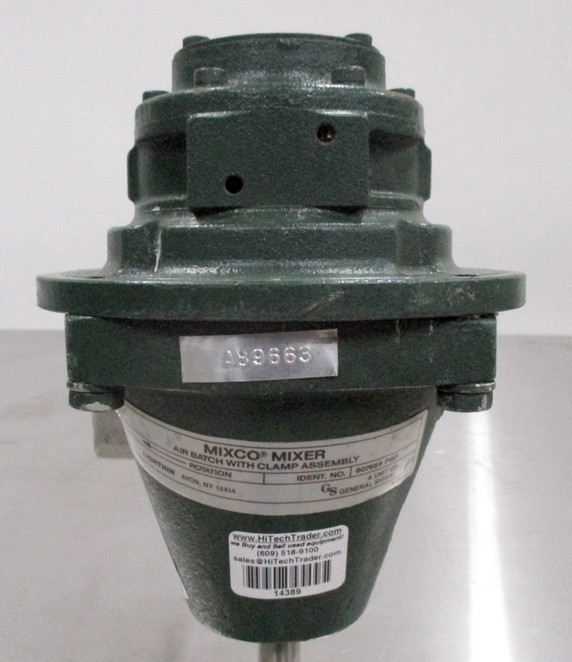

SPX Air Driven Lightnin Micro Mixer

The SPX Air Driven Lightnin Micro Mixer is a compact, pneumatic-powered mixer designed for safe and efficient agitation in small to medium tanks and vessels. Built for environments where electrical motors are restricted, it is especially well-suited for explosion-proof applications and industries handling flammable or volatile materials. With its stainless-steel wetted parts, portable design, and compatibility with CIP/SIP cleaning, this mixer delivers both safety and performance in demanding process conditions.

At HiTechTrader, we make advanced mixing solutions like the Lightnin Micro Mixer more accessible by offering pre-owned and refurbished units at a fraction of the cost of new equipment. Each mixer undergoes thorough inspection and testing, ensuring reliable operation and long-term durability. With over 30 years of experience supplying laboratory and industrial equipment, HiTechTrader helps facilities integrate proven technology into their processes, backed by cost savings, expert support, and warranty confidence.

Key Features

Vessel & Construction

1. Wetted parts crafted from stainless steel or corrosion-resistant alloys.
2. Compact, lightweight design for easy installation and repositioning.
3. Supports Clean-in-Place (CIP) and Steam-in-Place (SIP) protocols.
4. Multiple mounting options: clamp, flange, or fixed installation.
5. Customizable shaft lengths to match vessel dimensions.

Closure & Sealing

1. Explosion-proof pneumatic design, no electrical spark risks.
2. Air motor operates cool with minimal heat buildup.
3. Extended lubrication intervals reduce downtime.
4. Quiet, low-vibration performance improves workplace safety.

Operating Parameters

1. Runs on compressed air up to 100 psi (7 bar).
2. Variable motor speed: 40–350 RPM at 100 psi.
3. Speed controlled via air regulator or flow valve.
4. Consistent torque delivery across wide speed ranges.
5. Standard shaft diameters: 1–3 inches.
6. Weight: typically 10–30 lbs, depending on configuration.

Accessories & Compatibility

1. Supplied with Lightnin-approved impellers (e.g., A310).
2. Impeller size/type customizable for vessel geometry.
3. Works with portable clamp mounts and other mounting accessories.
4. Can be configured with custom shaft lengths for vessels up to 5,000 gallons.

Safe Operation Guidelines

1. Always supply clean, dry compressed air.
2. Regulate air pressure within recommended limits.
3. Use PPE when handling chemicals.
4. Avoid running mixer without load to minimize wear.
5. Schedule regular inspections for shaft, bearings, and impeller.

Applications

1. Mixing flammable solvents, fuels, and coatings.
2. Chemical dosing and blending in pharmaceutical and food industries.
3. Sterile and cleanroom mixing where electric motors are unsuitable.
4. Laboratory, pilot plant, and small-batch production.
5. Agitation in tanks ranging up to 5,000 gallons.

Why Buy from HiTechTrader?

For more than three decades, HiTechTrader has delivered high-quality laboratory and industrial equipment to facilities worldwide. Every SPX Air Driven Lightnin Micro Mixer we supply is tested, verified, and performance-ready, ensuring safe and consistent operation even in hazardous environments. By choosing HiTechTrader, you benefit from:

1. Significant cost savings compared to new units.
2. Confidence in mixers that meet strict performance standards.
3. Expert support to match your process needs.
4. Reliable equipment that delivers consistent results.
