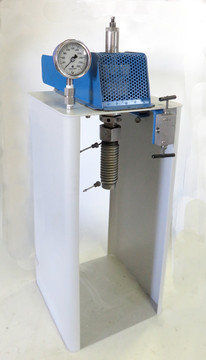

Parker Autoclave PH-M50HC-MAS Mini Reactor (50 ml, Hastelloy C)

Overview

The Parker Autoclave PH-M50HC-MAS Mini Reactor is a precision-engineered, high-pressure vessel built for laboratory-scale chemical research, catalyst testing, and process development. Designed from Hastelloy C, it offers exceptional resistance to corrosion and thermal stress, making it highly dependable for work under aggressive chemical and temperature conditions. Compact yet powerful, this 50 ml mini reactor is trusted by researchers who require accuracy, durability, and safe performance in demanding high-pressure experiments.

At HiTechTrader, we provide researchers and industrial labs with cost-effective access to advanced reactor systems like the PH-M50HC-MAS by offering pre-owned and refurbished units that perform to original standards at a fraction of new-equipment cost. This 50 ml Hastelloy C reactor delivers the perfect balance of corrosion resistance, high-pressure durability, and flexible agitation options, all in a compact, bench-top footprint. With features such as MagneDrive III magnetic stirring, customizable impellers, and versatile motor configurations, it allows precise reaction control for studies ranging from catalyst screening to hydrogenation, petrochemical development, and specialty chemical synthesis.

Key Features & Specifications

Volume & Construction

1. Available in 50 ml (this model) and 100 ml interchangeable versions
2. Fabricated from Hastelloy C for superior corrosion resistance
3. Finger-tight elastomer seal closure allows fast, tool-free sealing

Pressure & Temperature Rating

1. MAWP: 2,900 psi (200 bar) @ 600°F (315°C)
2. Typical operation: 2,500 psi (172 bar) @ 527°F (275°C) (O-ring dependent)
3. PH-M50HC-MAS variant: up to 5,000 psi (345 bar) and 650°F (343°C)

Dimensions

1. Inside diameter: 1.38 in (35 mm)
2. Inside length: 2.41 in (50 ml)
3. Reactor height: 22–24 in (varies with motor option)
4. Compact bench-top design optimized for lab environments

Stirring & Agitation

1. MagneDrive III magnetic agitator with direct-drive motor, belt-free, silent operation
2. Static torque: 5 in-lbs (565 N-mm)
3. Impeller choices: AE Dispersimax, turbine (6-blade), axial (4-blade up/down)
4. Motor options: 1/25 Hp or 1/10 Hp DC variable speed, or air motor with speed sensor

Heating & Control

1. Removable electric heater with built-in over-temperature protection
2. Options for cooling coils, process thermocouples (Type J or K), and advanced monitoring

Accessories & Safety

1. Liquid sample tubes with filters and valves
2. Gas inlet/vent valves, gauges, and rupture discs for safety
3. Pressure gauge: 0–3,000 psi; Transducer: 0–5,000 psi
4. O-ring options: Nitrile, EPR, PTFE-encapsulated Viton, Kalrez, Chemraz, etc.
5. Optional certifications: ASME Code Stamp, CE Mark, Canadian Registration

Applications

1. Catalyst screening and kinetics studies
2. Hydrogenation and Fischer-Tropsch synthesis
3. Petrochemical testing and process simulations
4. Environmental research and specialty chemical development
5. Parallel or small-volume high-pressure studies

Why Choose HiTechTrader?

When you choose the Parker Autoclave PH-M50HC-MAS from HiTechTrader, you're getting a reactor that delivers the performance and reliability of a new system without the heavy capital investment. Every unit is carefully inspected, tested, and refurbished to ensure it meets demanding laboratory and industrial standards. Our team helps match the right reactor configuration to your application, ensuring smooth setup with available accessories and spares. With ready-to-ship inventory, cost savings, and dedicated technical support, HiTechTrader gives you confidence in long-term value and dependable results for even the most challenging high-pressure research.
