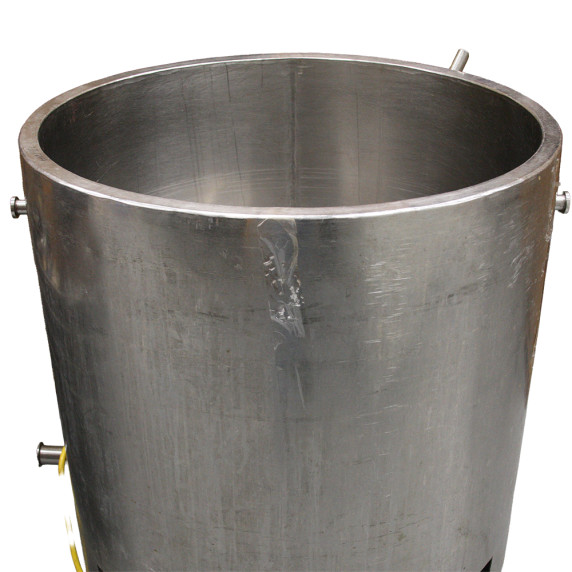

The Water Jacketed Stainless Steel 100 Gallon Heated Tank is a durable, temperature-controlled vessel designed for industrial, laboratory, and pilot-scale heating and mixing applications.
This custom-fabricated tank features a double-wall (jacketed) design with electric heating elements, providing efficient and uniform thermal control for liquids, gels, and viscous materials.
Mounted on heavy-duty wheels for easy mobility, this system combines a high-capacity 100-gallon stainless-steel vessel, integrated electric heater, and slanted bottom drain for convenient discharge and cleaning — ideal for chemical processing, food and beverage production, cosmetics manufacturing, and pharmaceutical applications.
Water Jacketed Heating System – Evenly distributes heat throughout the tank using a water jacket and integrated electric elements.
100-Gallon Stainless Steel Tank – Corrosion-resistant construction suitable for a wide range of liquids and compounds.
Electric Heated Jacket – Provides precise and energy-efficient temperature control without direct heating of product.
Bottom Drain Outlet – Slanted bottom design ensures complete product drainage and easy cleaning between batches.
Mounted on Wheels – Offers full mobility for flexible use in production or R&D environments.
Slanted Floor Design – Promotes efficient flow and prevents residue accumulation.
Compact, Durable Design – Heavy-duty stainless-steel construction ensures long-term service and process safety.
Ideal for Controlled Heating – Maintains consistent temperature for sensitive materials and viscosity-dependent processes.
| Parameter | Specification |
|---|---|
| Type | Water Jacketed Electrically Heated Tank |
| Capacity | ~100 Gallons (Approx. 378 Liters) |
| Material of Construction | Stainless Steel (inner and outer walls) |
| Heating System | Electric heating elements within water jacket |
| Heating Method | Indirect heating through circulating water jacket |
| Mounting | Mobile – tank mounted on locking caster wheels |
| Drain Type | Bottom discharge with slanted floor for complete drainage |
| Tank Diameter | 31.5 inches (800 mm) |
| Tank Depth | 25 inches (635 mm) |
| Jacket Type | Water jacket for uniform heat transfer |
| Power Supply | 230V or 480V (custom configuration) |
| Approx. Temperature Range | Ambient to 100 °C (212 °F), depending on configuration |
| Construction Features | Welded seams, polished interior, and external support frame |
| Mobility | Four heavy-duty caster wheels with brakes |
The 100-Gallon Water Jacketed Heated Tank is ideal for:
Chemical Processing – Mixing and heating solutions, solvents, or emulsions.
Pharmaceutical & Biotech – Preparing buffers, media, or temperature-sensitive liquids.
Food & Beverage – Heating syrups, oils, or liquid food ingredients.
Cosmetics & Personal Care – Blending lotions, creams, and viscous products under controlled heat.
Pilot-Plant & R&D Work – Batch-scale heating, blending, and material conditioning.
Uniform Heating Performance – Jacketed design prevents hot spots and provides consistent temperature distribution.
Easy Product Discharge – Slanted bottom and bottom drain allow complete emptying of contents.
Sanitary Stainless-Steel Design – Smooth internal surfaces simplify cleaning and prevent contamination.
Energy-Efficient Electric System – Maintains steady temperatures with minimal power use.
Mobile and Versatile – Wheeled design allows easy movement between work areas.
Customizable Setup – Can be configured with optional thermostats, agitation systems, or sight glasses.
HiTechTrader offers this custom built 100-Gallon Water Jacketed Electric Heated Stainless Steel Tank, a dependable and efficient solution for controlled liquid heating, temperature maintenance, and batch processing.
With its bottom drain, electric jacketed heating, and mobile design, this unit delivers industrial-grade performance in a versatile and easy-to-maintain package.
Contact HiTechTrader today for pricing, technical details, or customization options for your stainless-steel process tanks and jacketed heating systems.
